ARMOR W6: inspire confidence

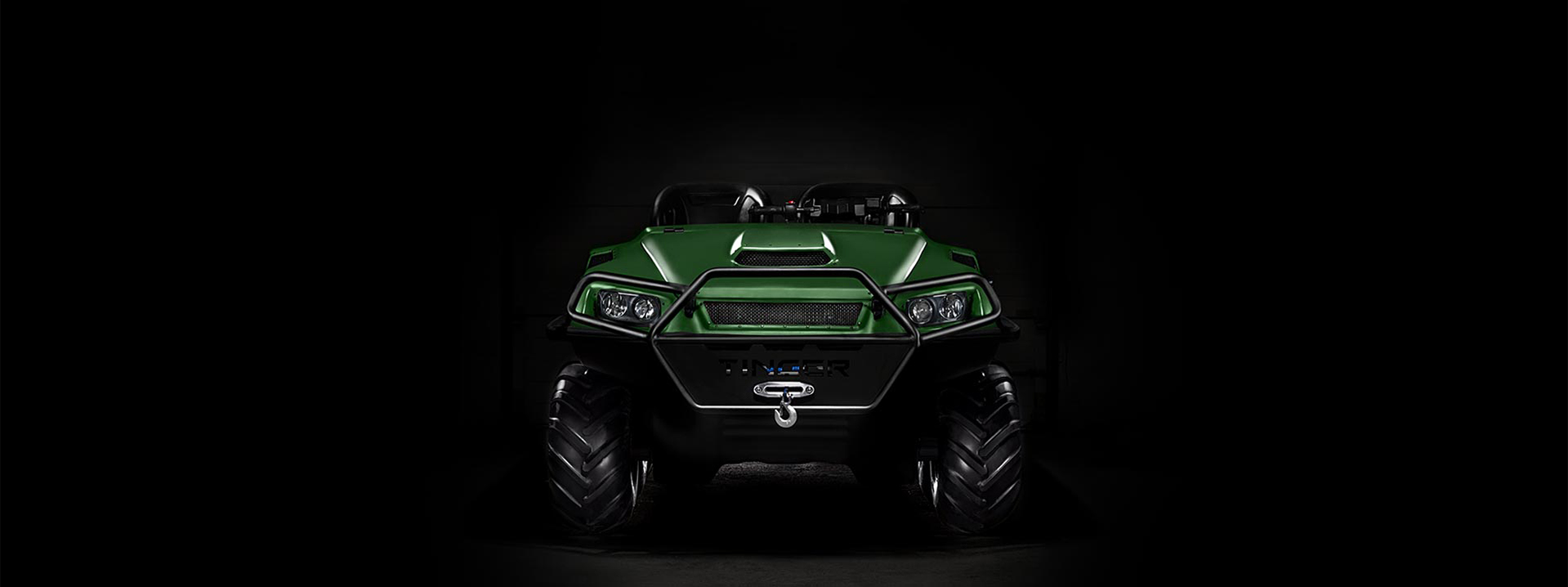

The wheeled Tinger Armor W6 ATV was created to be the intersecting point of design and functionality. Its primary purpose is to ensure remarkably comfortable driving on any road in any weather and any season. Affordable and compact, it thrives even in the most difficult situations thanks to its superb functionality and simplicity.

The 6x6 wheel formula provides a towing capacity of 500 kg, with 35 hp and 57 hp engines available. This power versus function is what makes the W6 such an excellent and affordable multi-purpose vehicle able to cope with anything. The Tinger Armor W6 overcomes not only land but also water obstacles. Whenever necessary you can install tracks on the wheels which means you don't leave impassability any chance.

Hunting, fishing, outdoor expeditions or farming - This ATV is versatile and truly reliable. Show what you are able to do together with Tinger Armor W6!

The wheels with deep tread pattern and low pressure tires on a steel rim will allow you to drive off-road on rocky ground easily, at any time - winter or summer, rain or sunshine.

TINGER color options

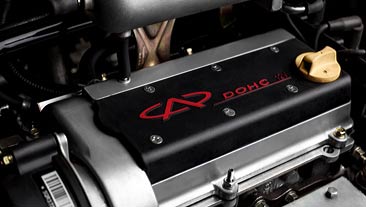

Reliable petrol engines that start in all weather conditions, including heavy frost meeting all requirements of the EURO IV environmental safety class. With it, you will not only save fuel but reduce your environmental footprint.

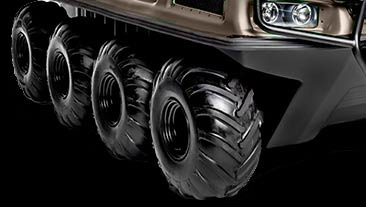

Set of wheels consisting of low pressure tires with deep tread pattern and steel rim is installed on Tinger Armor. It ensures that you could pass on completely impassable terrain, rocky ground, in winter, summer or offseason.

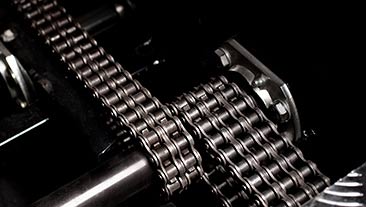

The use of double and triple chains, enlarged diameter ( 35 mm) driving half-shafts complete with unique control mechanism of chain adjustment are provided additional reliability of the vehicle. You will never be stranded far away from civilization.

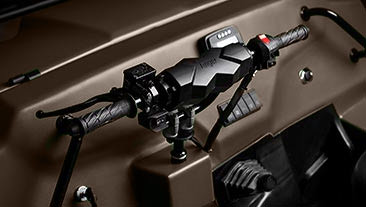

Simple and intuitive control is achieved through the enhanced sensitivity steering handle providing extra feedback. All necessary information about the vehicle’s functionality during use is displayed on a conveniently located digital panel. So you are always aware of what's going on under the hood of your "beast".

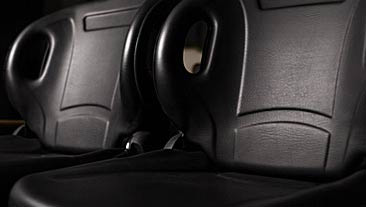

Ergonomic seats are specially designed for comfort on long journeys and for traversing difficult terrain. Forget about the bruises, stiffness or discomfort of traditional ATV, relax and enjoy comfortable and safe drive.
The case of our ATV is made of 10mm low pressure polyethylene HDPE making it lightweight, durable and safe; that’s why it is the number one choice for military hardware. This ultra resistant material will retain its unique properties anywhere between -100 С° to +200 С° ensuring that your ATV’s body will withstand anything the world can throw at it.

Tinger Wheeled ATV
1700 mm (67 in)
1280 mm
(50 in)
Tinger Wheeled ATV
2520 mm (99 in)
Technical characteristics
Length / Width / Height 2520 mm / 1700 mm / 1280 mm
(99 in) / (67 in) / (50 in)
Chery SQR
2 cylinders / 600 cc / 35.4 hp
3 cylinders / 812 cc / 57 hp
Dry weight 700 kg (1543 lb)
Tractive effort 500 kg (1102 lb)
Fuel tank capacity 38 liters (10 US gal) (appox.8 hours of driving)
Number of passengers 4 people onshore / 4 people on water
Cooling system liquid
Brake system hydraulic
Transmission system planetary differential
Steering ergonomic handlebars
Load on the tow bar 150 kg (331 lb)
Working temperature, conditions from -40С° to +40С° (from -40°F to 104°F)
any weather, any terrain
