Multi-purpose all-terrain vehicle TINGER
can replace 5 different vehicles
Snow mobileTo handle the snow-covered areas
TractorTo transport the construction materials, remove the snow, countryside works and farming
AMPHIBIOUSTo move on water
Quad BikeTo ride through almost any rugged terrain
Swamp BuggyTo pass through the boggy places
Tinger Track will replace them all
Tinger Track will replace them all
Colour of body
Gallery
Technical characteristics
Track s380
Track c500
Track s500
| Engine Chery SQR | 3 cyl. / V:812 cm3 / 57 HP |
| Max Speed | 22 MpH (35 Km/h) |
| Shipping weight | 900950950 kg |
| Width of tracks | 380500500 mm |
| Load capacity | 500 kg |

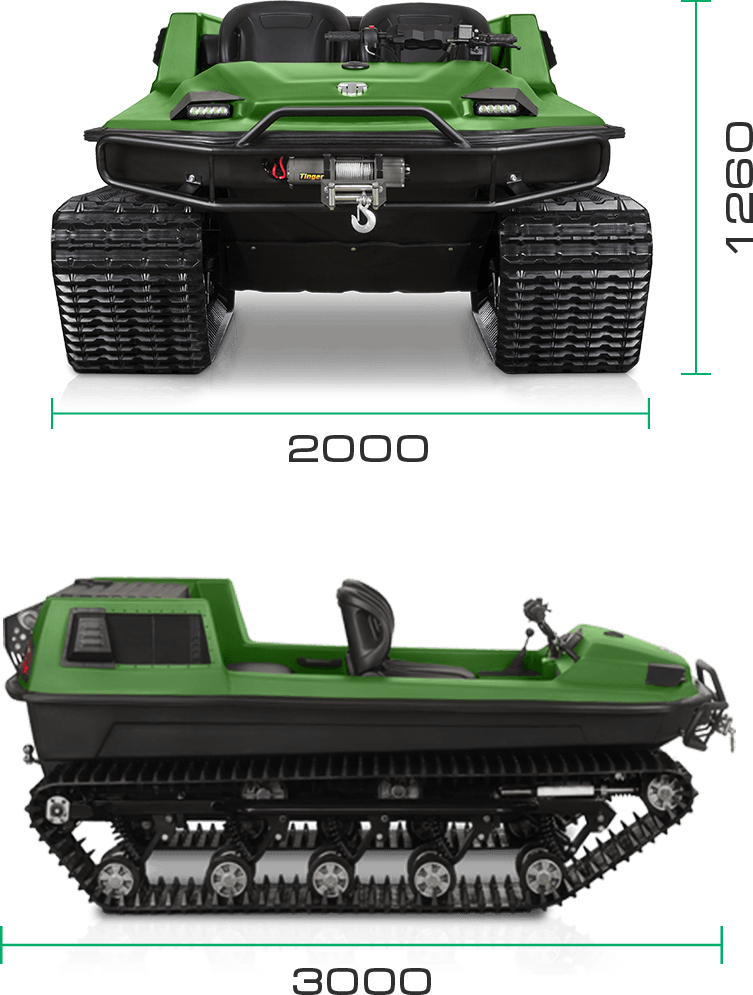

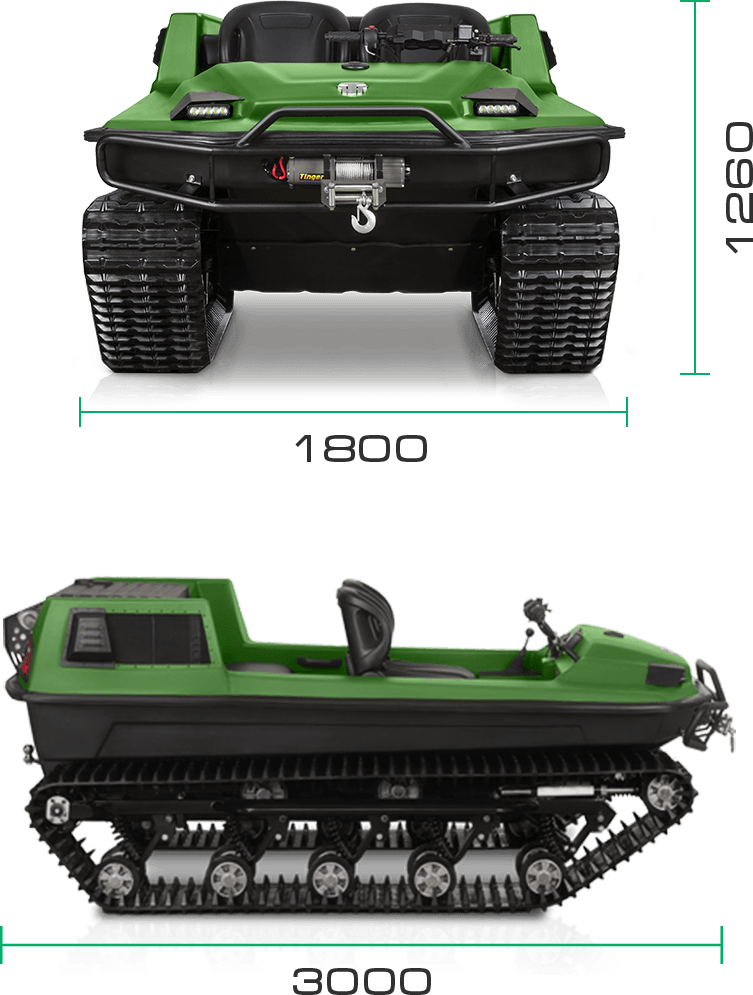

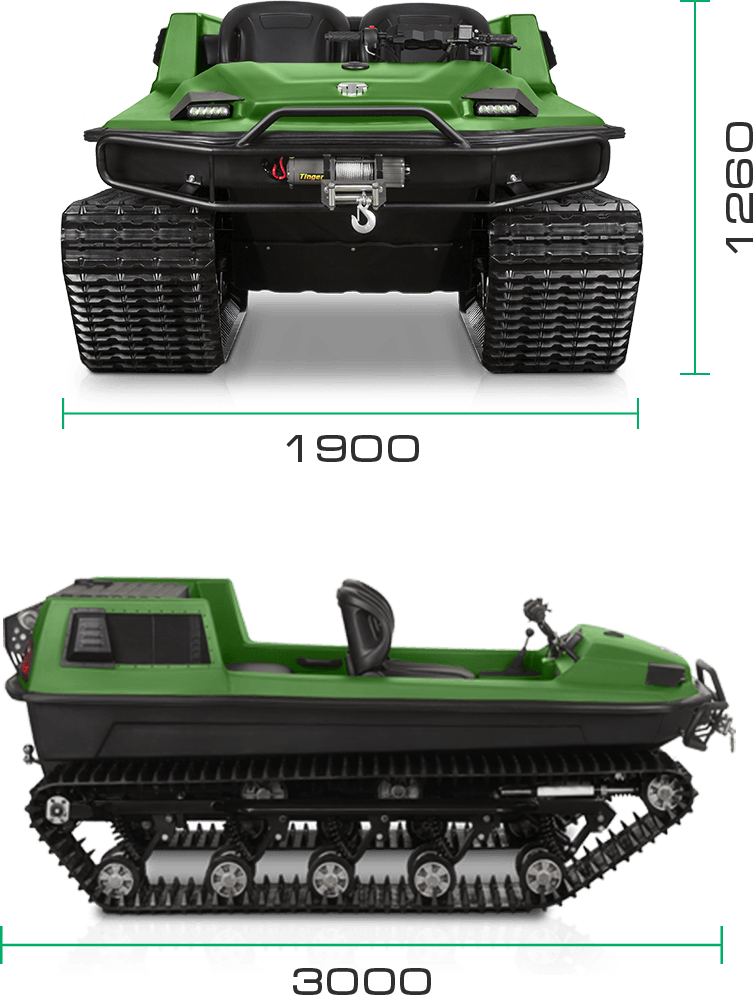

| Length/Width/Height (mm) | 3000х180019002000х1260 |
| Ground clearance | 280 mm |
| Towing capacity | 800 kg |
| Body | HDPE |
| Brakes | Hydraulic |
| Ground pressure | 0,080,050,05 kg/сm2 |
| Fuel capacity | 38 litres/appr. 8 hrs of operation |
| Number of passengers | 5 prs on land / 4 prs on water |
| Cooling | Liquid-cooled |
| Transmission | CVT |
| Steering | Ergonomic handlebar |
| Load on tow bar | 100 kg |
| Operation conditions | -30C° to +30C° |
Functional advantages
Energy-efficient and
reliable four-stroke engine
High-strength and steel reinforced tracks
Reliable and strong
double chains
Easy-to-use steering
Comfortable and
safe ergonomic seats
Light and strong
HDPE body
Energy-efficient and
reliable four-stroke engine
reliable four-stroke engine
High-strength and steel reinforced tracks
Reliable and strong
double chains
double chains
Easy-to-use steering
Comfortable and
safe ergonomic seats
safe ergonomic seats
Light and strong
HDPE body
HDPE body
Customer support
Presentation Track
Order ATV
Catalog of accessories
Nearest dealer
Full description of kitting and price of ATVs, prices of optional equipment are in the price-list. You can learn more detailed information about ATVs, leasing and using of trade-in and other special offers please contact us at all@tingeratv.com.
